Fast Chargers
Humax specializes in EV charging technology for domestic and commercial use.
Designed for compatibility and accessibility
- Fast chargers take about 30 minutes to be charged up to 80% of full capacity.
- They are mainly installed outdoors such as motorway service stations and other public areas.
- Humax fast chargers have 3 interfaces: AC-Speed, CHAdeMO, and DC Combo.
- They are compatible with domestic and overseas vehicles.
- Designed to be user-friendly, our couplers are easy to handle for adults of all ages.
Charging Time
About 30 minutes
(for 27kWh EV batteries)
Charging conditions
Temperature: -25~40℃
Humidity: 95%
(However, there must be no formation of dew)
Charging status display
Wide LCD touch screen (U/I)
User Authentication
RFID Card (Optional: connected to payment systems)
> DC 100kW Fast Charger (HEV-Q1100 / Dual)
Main Features
- Simultaneous Dual Charging
- Remote Control and Monitoring
- Protection from Short Circuiting and Over Temperature
Specifications
|
Features
|
Fast Charger (HEV-Q1100)
|
|---|---|
|
Output Power
|
100kW/h (Dual Charging Mode: 50kW Each)
|
|
Input Voltage
|
3 Phase/4 Wire, AC 380V, 60Hz
|
|
Output Voltage
|
DC 200~500V, 200A, 100kW (Single Mode) / DC 200~500V, 110A, 50kW (Dual Mode)
|
|
Charging Type
|
IEC 62196-3 (CCS combo 1) 2 Way
|
|
Cable (Length)
|
Auto Cable Hold / Reclamation Function (5.5m)
|
|
Display
|
12.1“ Touch-LCD
|
|
Payment Method
|
Credit Card, RFID Card
|
|
Protection Grade
|
IP44
|
|
Operating Temperature & Humidity
|
-25 ~ 40℃, 95%
|
|
Product Size
|
Main Body: 670(w) x 530(d) x 1700(h)mm / Incl. Cable Holder: 820(w) x 700(d) x 1800(h)mm
|

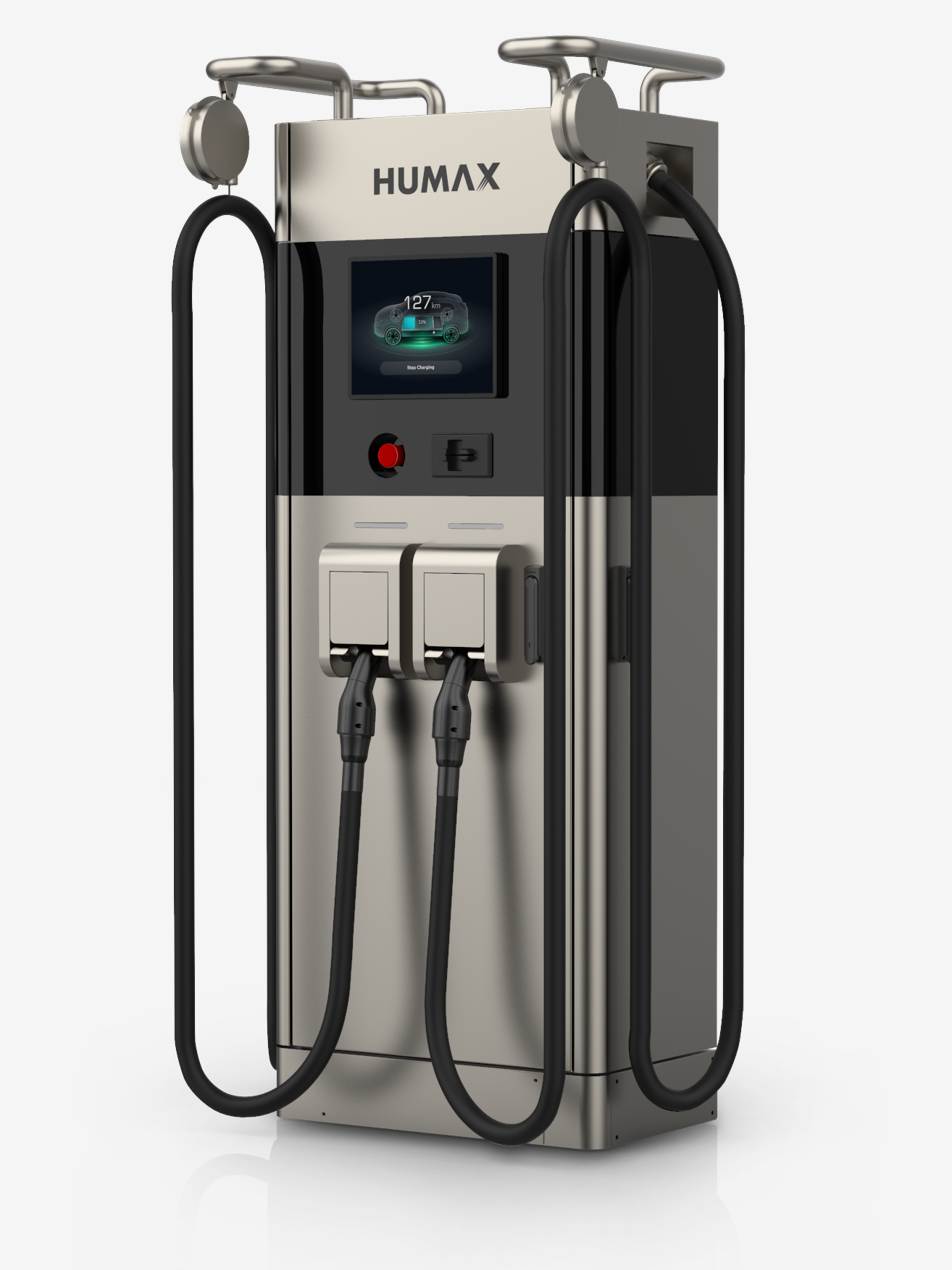

> DC 50kW Fast Charger (HEV-Q1050 / 2-Way Mode)
Main Features
- DC Combo + DC CHAdeMO
- Remote Control and Monitoring
- Protection from Short Circuiting and Over Temperature
Specifications
|
Features
|
Fast Charger (HEV-Q1100)
|
|---|---|
|
Output Power
|
50kW/h (2-way Mode)
|
|
Input Voltage
|
3 Phase/4 Wire, AC 380V, 60Hz
|
|
Output Voltage
|
DC 200~500V, 120A, 50kW
|
|
Charging Type
|
IEC 62196-3 (CCS combo 1, CHAdeMO)
|
|
Cable (Length)
|
Auto Cable Hold / Reclamation Function (5.5m)
|
|
Display
|
12.1“ Touch-LCD
|
|
Payment Method
|
Credit Card, RFID Card
|
|
Protection Grade
|
IP44
|
|
Operating Temperature & Humidity
|
-25 ~ 40℃, 95%
|
|
Product Size
|
Main Body: 670(w) x 410(d) x 1700(h)mm / Incl. Cable Holder: 820(w) x 580(d) x 1800(h)mm
|
